Connect

This requires a more hands-on approach from the channel partner's development team. It is suitable for partners who desire a more integrated solution with consent-based access to user data via open APIs.

Open API Access

In the context of integrating with open APIs, it is crucial to understand that obtaining an access token, which includes user consent, is a fundamental requirement. This process ensures that all interactions with the API are secure and authorized by the user. It's important to note that the workflow for integrating these APIs into a web environment is slightly different compared to mobile integration. This document will provide a clear guide on how to effectively implement the workflow for web integration while adhering to the necessary security protocols and user consent guidelines.

Workflow Overview

1. Initiate OAuth Flow: The Host app initiates the OAuth flow by redirecting the user to Quicko OAuth with a properly constructed URL including an options object that is base64 encoded.
2. User Consent: The user grants consent on Quicko’s OAuth app for data sharing.
3. Exchange Request Token: Upon successful consent, Quicko redirects back to the Host app with a request_token. The Host app exchanges this token for an access token.
4. Data Access: With the access token, the Host app can now access the user's Quicko data.
5. Income Tax Web App Redirection: Finally, the Host redirects the user to Quicko's Income Tax Web App to proceed with their tax-related activities.

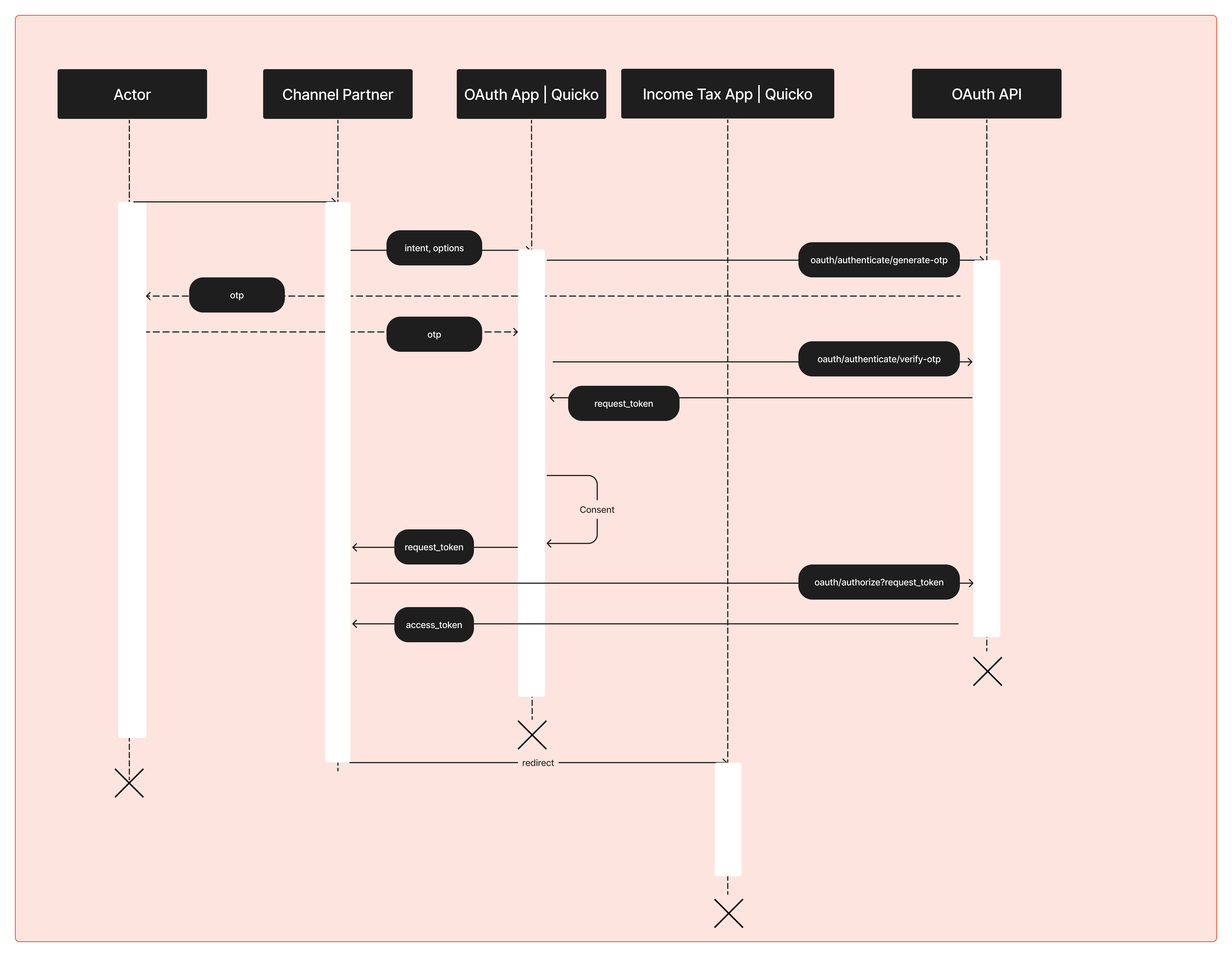

Advance Integration Workflow

Step-by-Step Integration

1. Redirect to Quicko OAuth

Construct a redirect URL to Quicko's OAuth endpoint. Include your api_key and the redirect_url (the URL to which Quicko will send the user after authorization) and an options query parameter, which is a base64-encoded JSON object containing user details and theme preferences.

Options Object

Here is the JSON structure of the options object:

Options

{
    "user": {
        "email": "[email protected]",
        "mobile": {
            "isd": "91",
            "number": "XXXXXXXXXX"
        }
    },
    "theme": {
        "mode": "dark",
        "seed": "#2962FF"
    },
    "intent": "SAVE" | "PAY" | "FILE" | "TRACK"
}

Encode this JSON object in base64 and append it as a query parameter to the OAuth URL.

Additionally, to mark the user as an affiliate of your platform, you'll need to pass an affiliate_id query parameter.

For example,

Sample

https://oauth.quicko.com/?api_key={{your_api_key}}&redirect_uri={{host_redirect}}&affiliate_id={{your_affiliate_id}}&options=eyJ1c2VyIjp7ImVtYWlsIjoidXNlckBtYWlsLmNvbSIsIm1vYmlsZSI6eyJpc2QiOiI5MSIsIm51bWJlciI6IlhYWFhYWFhYWFgifX0sInRoZW1lIjp7Im1vZGUiOiJkYXJrIiwic2VlZCI6IiMyOTYyRkYifSwiaW50ZW50IjoiRklMRSJ9

2. User Consent

When the user is redirected to Quicko's OAuth endpoint, they will be presented with the consent screen. Upon granting consent, Quicko will redirect the user back to your redirect_url.

3. Handle the Redirect

Upon user consent, Quicko redirects the user to your redirect_url with a request_token. If the user denies consent, they will be redirected back with a query parameter status set to cancelled.

For example, if the host's redirect_url is host-app.com/incoming, the user will be redirected to:

Consent Denied

https://host-app.com/incoming?status=cancelled

Consent Aquired

https://host-app.com/incoming?status=success&request_token={{token}}

Handling Denial of Consent

If a user denies consent, handle the redirection with the status parameter appropriately in your application flow, typically by presenting an appropriate message to the user or offering the option to retry the authorization process.

4. Exchange Request Token

Your server should exchange the request_token for an access token by making a server-side request to Quicko's token exchange endpoint. Store this access token securely on your server for subsequent requests to Quicko’s APIs.

You can user the OAuth Authorize API for this exchange.

5. Redirect to Income Tax Web App

With the access token, query the user's data as needed. Then, to continue their tax journey, redirect the user to Quicko's Income Tax Web App (https://it.quicko.com).

Recommendations

• Secure Storage: Always ensure the access_token is stored securely.
• Event Handling: Regularly listen to event postbacks from Quicko's services to keep track of the user's journey and take appropriate actions.
